Tesla Model X LED 1034317-00-C Headlamp Right LH Driver 2015-2019

1
MOQ
Negotible
Price
Tesla Model X LED 1034317-00-C  Headlamp Right LH Driver 2015-2019
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Composite Materials
Fitment: Universal
Durability: Made Of High Quality Materials For Long-lasting Use
Function: Enhances The Appearance And Aerodynamics Of The Car
Color: Black
Weight: 5.8KG
Size: 72*42*32
Highlight:

Tesla Model X LED headlamp

,

2015-2019 Tesla Model X headlamp

,

EV car right driver headlamp

Basic Infomation
Place of Origin: China
Brand Name: CFN
Model Number: 1034316-00-C
Payment & Shipping Terms
Packaging Details: 72*42*32 one piece,Box
Delivery Time: 5-10 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description
Tesla Model X LED 1034317-00-C Headlamp Right LH Driver 2015-2019

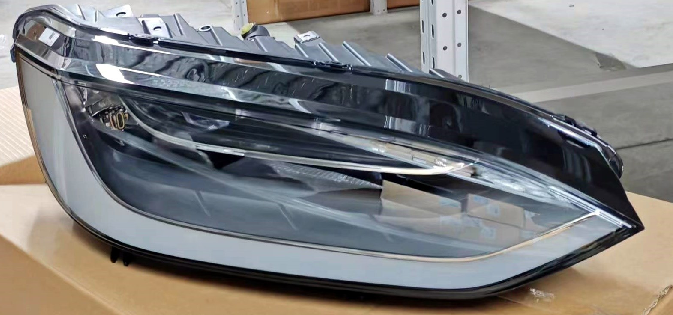

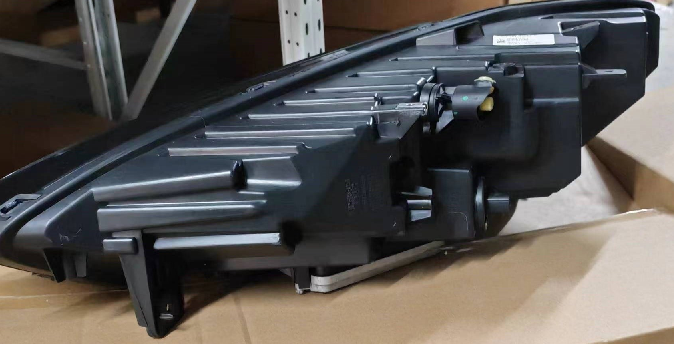

Right-Hand (RH) LED Headlamp for 2015–2019 Tesla Model X | 1034317-00-C (CFN Brand)

This right-hand (RH) LED headlamp (part number 1034317-00-C) is a meticulously designed OEM-matching lighting solution, tailored specifically for 2015–2019 Tesla Model X across all its variants, including 75D, 90D, 100D, P100D, and Signature Edition.

Core Functions & Safety Enhancements
1. Superior LED Illumination
  • Dual-Beam LED Setup: Equipped with high-quality OEM-grade LED chips, offering distinct low and high beams with broad 110° light pattern (low beam) and extended 140m visibility (high beam).
  • Optimal Color Temperature: 5500K cool white light reduces eye fatigue and enhances color recognition for improved road safety.
  • Swift Activation: Achieves full brightness in 0.1 seconds with instant on/off functionality.
2. All-Weather Resilience
  • Anti-Fog and Anti-Condensation: Specialized coating and ventilation valves prevent internal condensation.
  • Extreme Temperature Tolerance: Operates flawlessly from -40°C to 85°C.
  • High Waterproof and Dustproof Rating: IP6K9K rating withstands harsh weather and road conditions.
3. Factory-Integrated Features
  • Daytime Running Light (DRL): Built-in LED DRL with 1600cd brightness meets global visibility requirements.
  • Turn Signal Compatibility: Seamlessly synchronizes with vehicle's BCM for consistent 1.5Hz amber flashing.
Robust Construction for Longevity
Component Material & Technical Attributes
Headlamp Housing Impact-resistant PC with UV-resistant clear coat, withstands 1200-hour ASTM G154 UV tests
Lens High-transparency PMMA with anti-scratch coating (≥4H hardness), maintains 90% light transmittance
LED Chips High-power SMD LEDs with ≥60,000 hours lifespan (8-10 years normal use)
Control Module OEM-spec CAN bus-compatible driver, prevents error warnings
Reflective Bowl Chrome-plated aluminum alloy for optimal light reflection and uniform beam distribution
Installation Instructions (Professional Installation Recommended)
Step 1: Vehicle Preparation
  • Turn off vehicle and disconnect 12V battery in front trunk
  • Remove right-side trim panel using trim tool
Step 2: Old Headlamp Removal
  • Remove three 13mm mounting bolts
  • Disconnect 4-pin electrical connector
  • Gently remove old headlamp
Step 3: New Headlamp Installation
  • Remove protective film from new headlamp lens
  • Align and secure with mounting clips (listen for "click")
  • Hand-tighten three 13mm bolts
Step 4: Testing and Securing
  • Reconnect battery and electrical connector
  • Test all lighting functions
  • Torque bolts to 8±0.5 Nm
  • Reinstall trim panel
Step 5: Beam Alignment (Essential)
  • Adjust headlight beam angle using professional tool or Tesla service
Proper alignment ensures optimal visibility and prevents dazzling oncoming drivers.
