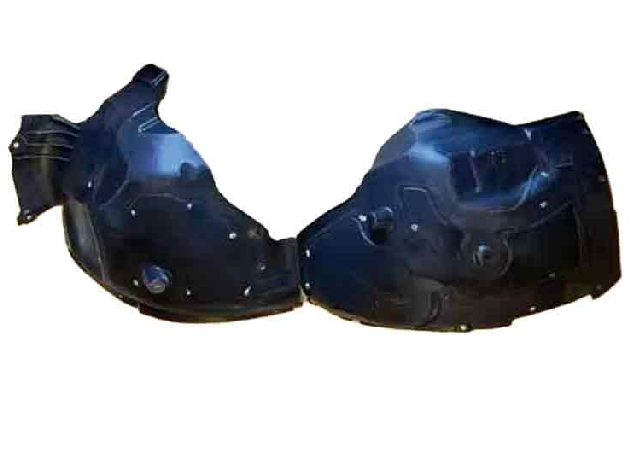

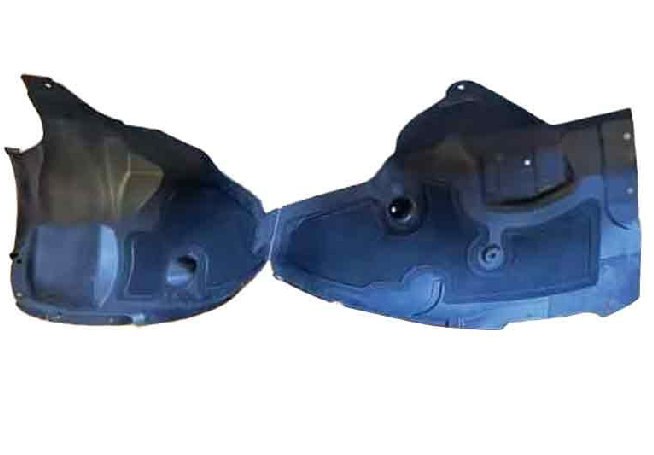

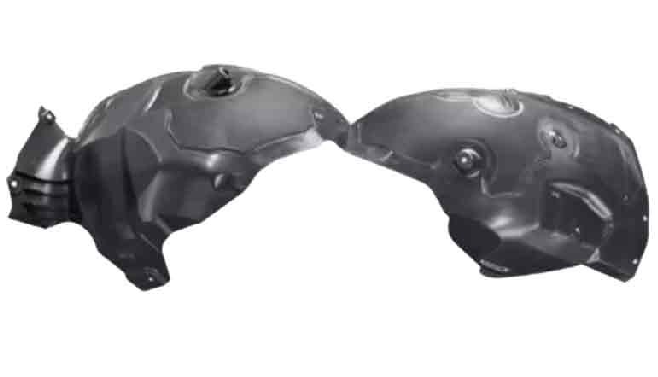

Front Left-Hand (LH) Wheel Liner Assembly for 2023+ Tesla Model 3 | 1694553-00-E (CFN Brand)

Core Functions

1. Critical Component Shielding
   Acts as a durable barrier between the front left wheel well and key underbody parts, including the front suspension control arms, brake hoses, wiring harnesses (for ADAS sensors and lighting), and cooling system pipelines. It prevents damage from road debris (gravel, stones, sharp fragments) kicked up by the left front wheel during driving—avoiding costly repairs to sensitive components like the front suspension hardware or sensor wiring.
2. Debris & Corrosion Prevention
   Blocks mud, rainwater, and road salt from splashing into the wheel well and underbody cavity. This prevents corrosion of metal components (such as suspension bolts, brake caliper brackets, and subframe joints) and reduces the risk of water-induced short circuits in nearby wiring. For 2023+ Model 3’s updated ADAS sensor wiring near the front wheel well, the liner’s tight fit also avoids debris accumulation that could interfere with sensor signals.
3. Aerodynamic & Noise Control
   Follows Tesla’s 2023 Model 3 facelift aerodynamic engineering to guide airflow around the left front wheel. It minimizes wind resistance (supporting the vehicle’s energy efficiency, especially during high-speed cruising) and reduces road noise caused by airflow turbulence in the wheel well—preserving the 2023+ Model 3’s enhanced cabin quietness.

Durable Construction

• Main Liner Body: Crafted from high-grade PP (Polypropylene) plastic with a reinforced rib structure. The PP material has a notched impact strength of ≥5.5kJ/m², resisting cracking from impacts with small stones or minor curb contact; the integrated ribs enhance structural rigidity, preventing deformation even under long-term pressure from wheel vibration or road irregularities.
• Mounting Hardware: Includes OEM-spec plastic snap clips and metal-reinforced mounting brackets. The clips are made of high-tensile nylon (resisting breakage during installation/removal), while the brackets use galvanized steel (tensile strength ≥300MPa) for corrosion resistance—ensuring the assembly stays securely attached to the wheel well.
• Environmental Adaptability: Withstands extreme temperature fluctuations (-30°C to 85°C), suitable for both snowy winters (resists brittleness in low temps) and high-temperature summers (avoids softening or warping). It also resists UV fading (passes 400-hour ASTM G154 UV tests) and chemical corrosion from road salt, car wash detergents, or rain.

Installation

1. Vehicle Preparation: Lift the front left side of the vehicle with jack stands (ensure stable support); remove the front left wheel to access the wheel well easily. Peel back the front fender’s lower trim (if needed) to expose the wheel well’s mounting points.
2. Old Liner Removal: Use a trim tool to gently detach the plastic snap clips and 8mm bolts securing the old liner to the front fender, bumper, and underbody frame (typically 9–11 fasteners total: 6 clips + 5 bolts). Note the position of each fastener to avoid misplacement, then pull the old liner away (take care not to damage adjacent components like the fender trim or brake lines).
3. Cleaning: Wipe the wheel well’s mounting surface with a dry cloth to remove dust, mud, or residual adhesive—ensuring a tight fit for the new assembly.
4. New Assembly Installation: Align 1694553-00-E with the wheel well’s mounting points (ensure the liner’s edges fit snugly against the front bumper and fender). Snap the plastic clips into place (listen for a “click” to confirm security), then hand-tighten the 8mm bolts to avoid cross-threading.
5. Torque Fastening: Use a torque wrench to tighten the bolts to 4±0.3 Nm (per Tesla’s 2023+ Model 3 service specs)—over-tightening may crack the liner’s plastic mounting tabs.
6. Post-Installation Check: Reinstall the front left wheel, lower the vehicle, and inspect the wheel well from the side. Confirm the liner is flush with the fender and bumper, with no gaps that could allow debris entry.
