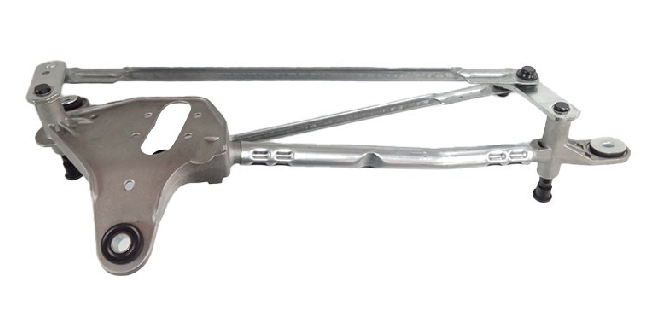

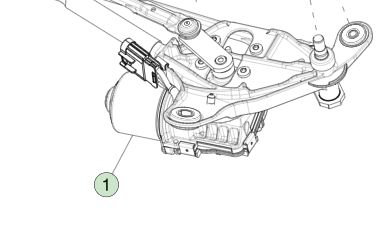

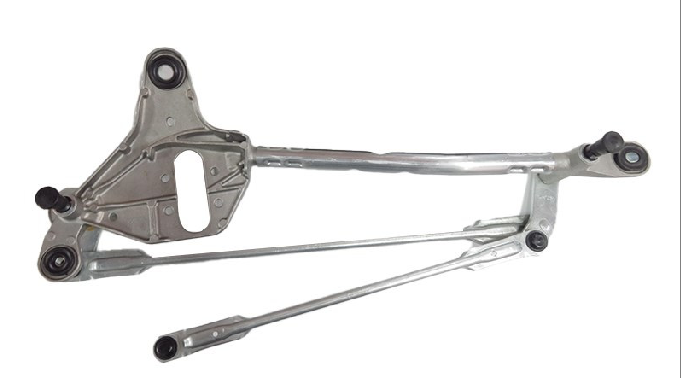

Wiper Module - Left Hand Drive for Tesla Model 3 (2017-2023) | 1076725-CN-G

Product Overview

Key Specifications

Core Benefits for Your Model 3

• All-Weather Reliability: The permanent magnet motor delivers consistent torque across speeds, ensuring effective wiping even in heavy rain, snow, or slush. Its IP6K9K rating protects internal components from water intrusion—critical for longevity in harsh climates.
• Precision Movement: The reinforced polymer linkage with steel pivots eliminates "play" in the system, ensuring the wiper blades follow a precise arc across the windshield. This prevents streaking, missed spots, or uneven wear on blades.
• Seamless Integration: Designed to work with Model 3’s auto-sensing rain system, the module communicates with the vehicle’s body control module (BCM) to adjust speed based on rainfall intensity—no calibration required after installation.
• Durable Construction: Corrosion-resistant materials (including zinc-plated hardware) withstand road salt, humidity, and temperature extremes (-40°C to 85°C), ensuring years of trouble-free operation.

Signs It Needs Replacement

• Wiper Malfunctions: Blades move slowly, jerk, or stop mid-cycle (indicates motor or linkage failure).
• Unusual Noises: Grinding, clicking, or squealing during operation (signals worn pivot points or motor strain).
• Inconsistent Wiping: Blades skip sections of the windshield or move out of sync (often caused by broken linkage components).
• Auto-Sensing Failure: Wipers don’t adjust to rainfall (may indicate a faulty module-to-BCM communication link).

Installation Guidelines

• Professional Installation Recommended: Requires removal of the front cowl panel, windshield washer fluid reservoir (partial), and access to the wiper motor mounting area. Steps include:
  1. Disconnect the 12V battery to avoid electrical shorts.
  2. Remove the cowl trim and disconnect the wiper arm linkage.
  3. Unbolt the old module (3x 8mm bolts, torque 5 Nm) and disconnect the 6-pin harness.
  4. Mount the new module, reconnect the harness, and secure with bolts to 5 Nm.
  5. Reassemble components and test all wiper modes.
• Pro Tip: Pair replacement with new OEM wiper blades (part 1080515-00-C) for optimal performance.
• Safety Note: Ensure the 12V battery is fully disconnected during installation to prevent motor damage or injury.
